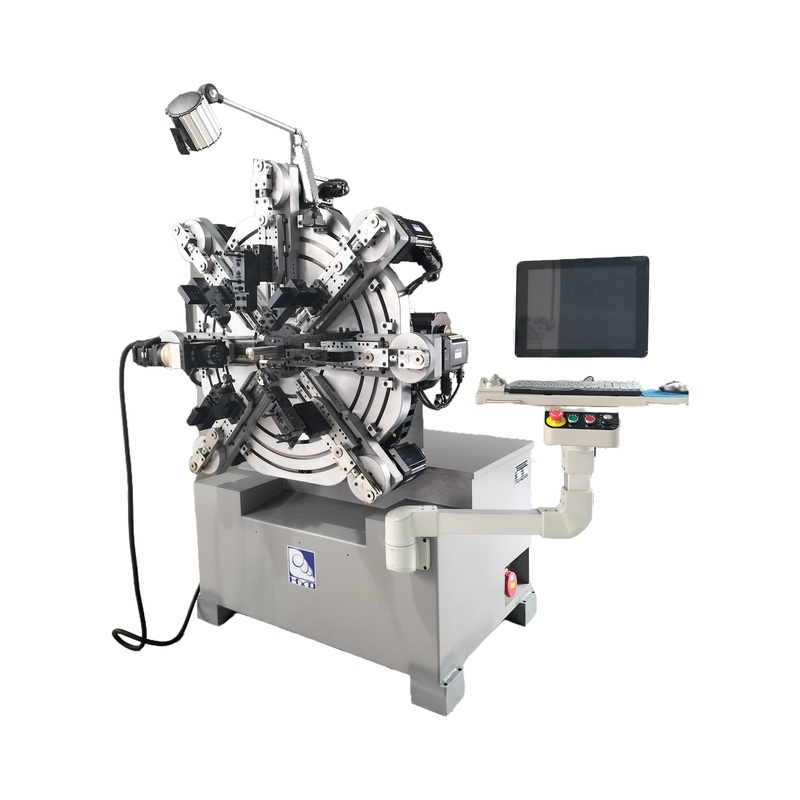

The HYD-40T-10A is a high-performance 10-axis CNC spring coiling machine designed for precision and high-efficiency spring production. It is suitable for processing low-carbon steel (2–6mm) and high-carbon steel (1–4mm) wires, capable of manufacturing compression springs, extension springs, torsion springs, and various custom wire forms. Widely used in automotive, industrial machinery, and home appliance industries.
Key Specifications
| 型号 Model | HYD-40T-10A |
| 加工线径范围 Wire Size | Low-carbon Steel:2-6mm High-carbon Steel:1 -4mm |
| 伺服轴数 Servo Motors | 10 axes |
| 导轨 Lead Rail | Itineraries 120mm |
| 送线组数Wire Feed Roller | 4 Pairs |
| 最大误差 Maximum error | ±0.15 (Length) |
| 最高送线速度Max Wire Feed Speed | 100m/min |
| 控制系统Control System | 1SET |
| 送线架Decoiler | 300KG |
| 减速器Reducer | 10PCS |
| 伺服电机总功率Servo Motor Power | 21.5KW |
| 电机品牌Motor Brand | 三洋Sanyo |
| 角度最短长度Shortest Angel Length | 4 Times Wire Diameter |
| 电源Power Supply | 380V±10%V50Hz |
| 机器重量Machine Dimension | 2500KG |
| 机器尺寸 Machine Size | L1100*W1450*H2000MM |
Product Advantages
- High-Precision Forming: 10-axis synchronized control enables complex multi-angle and multi-coil spring production with consistent quality.
- High-Speed Production: Wire feeding speed up to 100m/min, significantly improving output for bulk orders.
- Robust & Durable: Equipped with Sanyo servo motors, precision reducers, and reinforced structure for long-term stable operation.
- Strong Adaptability: Supports medium to heavy wire diameters, with a 300KG decoiler capacity to minimize material reloading.
- Smart Operation: CNC system allows parameter storage and quick setup, reducing dependency on highly skilled operators.
Typical Applications
- Automotive Industry: Suspension springs, engine valve springs, etc.
- Industrial Machinery: Buffer springs for heavy equipment, transmission components.
- Home Appliances: Switch springs, damping elements.
- Custom Processing: Special-shaped wire forms, non-standard springs.
With years of expertise in spring machinery manufacturing, the HYD-40T-10A ensures reliable performance through solid craftsmanship and high-quality components. We provide comprehensive after-sales support and technical assistance to enhance your production efficiency. Inquiries and collaborations are welcome!
